Home / CNC milling
Services · CNC milling
CNC milling
5 CNC milling machines, from 1000 × 490 × 800 mm up to 2500 × 1000 × 1000 mm. Some with automatic tool change and 4th axis.
What we mill
One-offs and small batches

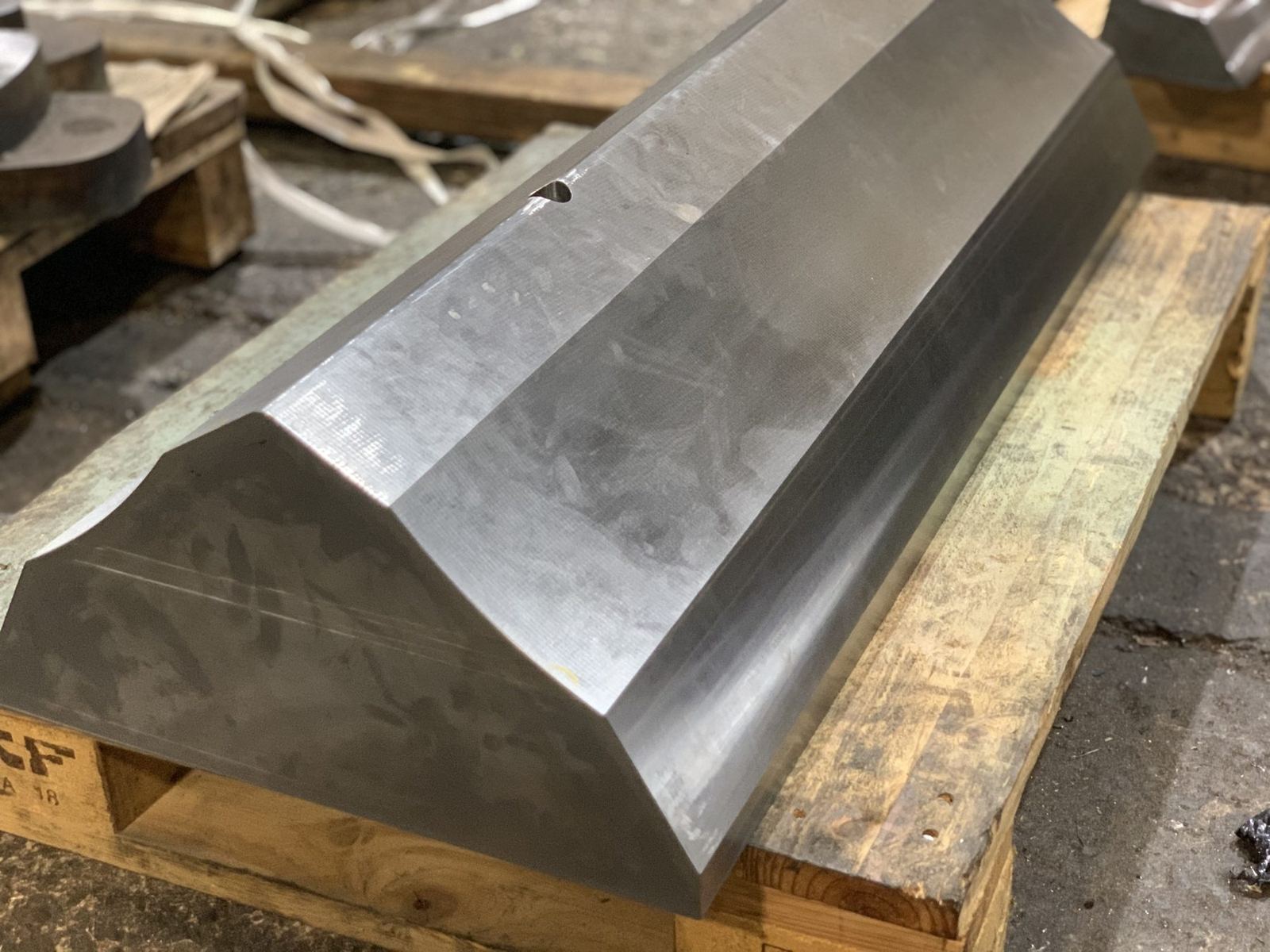

We machine one-off and small-batch components in carbon, alloy and stainless steels.
We also repair or replace obsolete parts when the original is no longer available.
- 5 CNC mills
- Largest travel 2500 × 1000 × 1000 mm
- Automatic tool change and 4th axis on some machines
- Heidenhain controls on four of the five mills
Machines

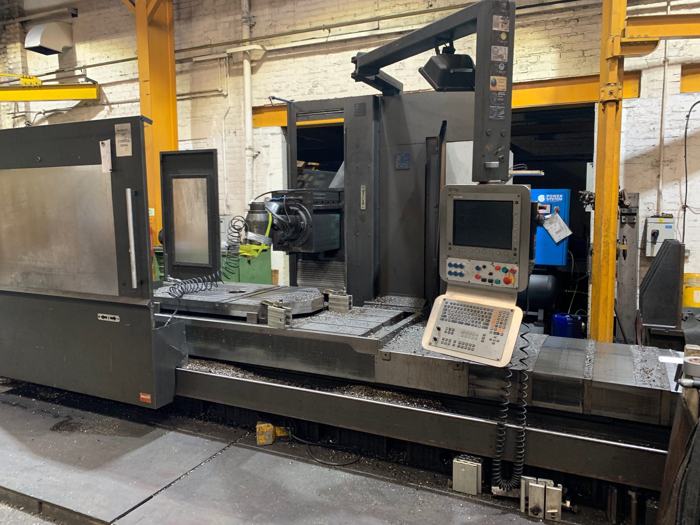

Our CNC mills
| Machine | Control | X travel | Y travel | Z travel | Notes |
|---|---|---|---|---|---|
| Hartford MC 1652 | Heidenhain iTNC 530 | 1600 mm | 820 mm | 660 mm | 4th axis |
| Correa Diana 25 | Heidenhain iTNC 530 | 2500 mm | 1000 mm | 1000 mm | – |

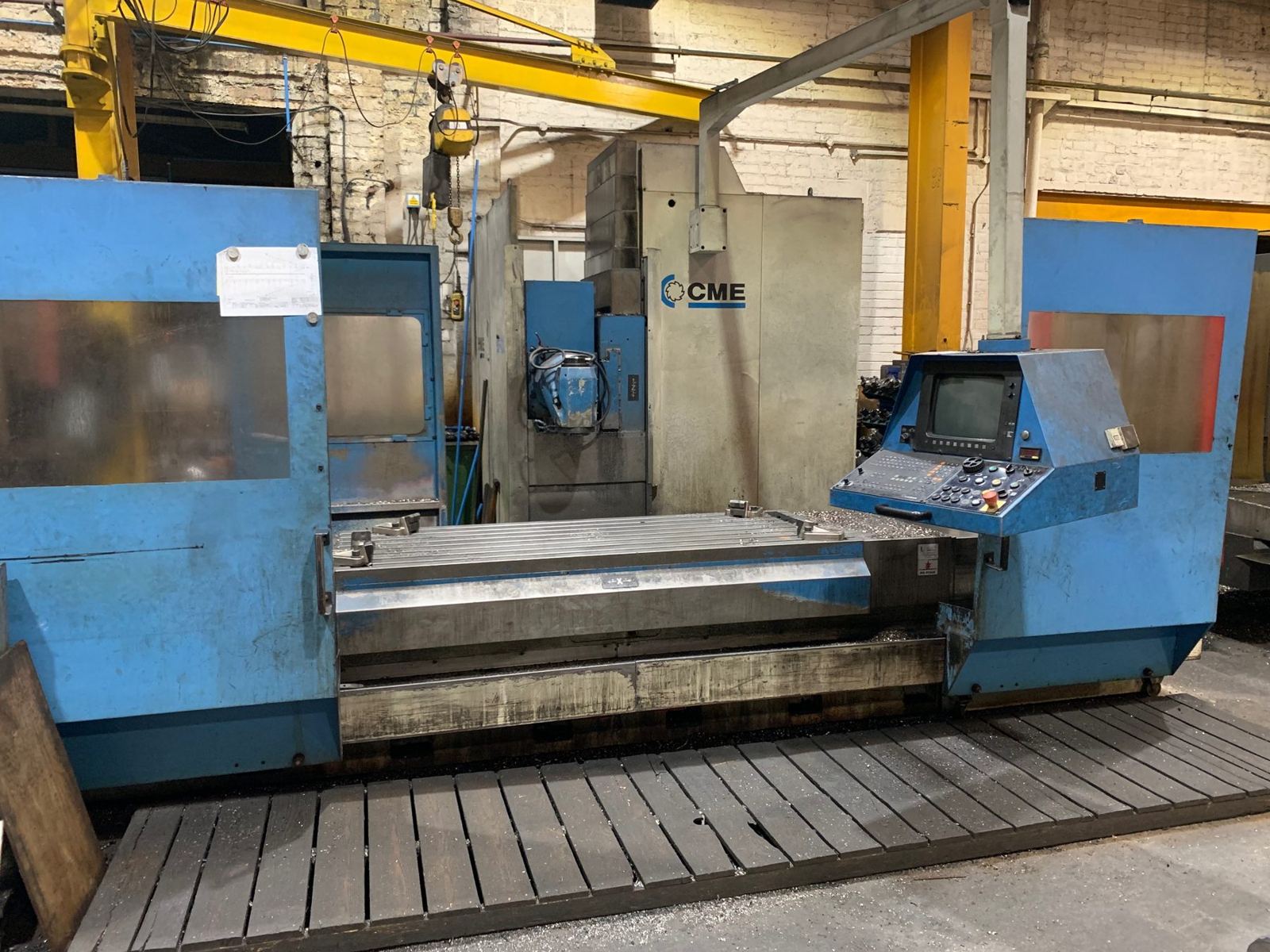

| CME | Heidenhain TNC 420 | 2000 mm | 1000 mm | 960 mm | – |
| Correa CF-15 | Heidenhain TNC 426 | 1300 mm | 800 mm | 745 mm | – |

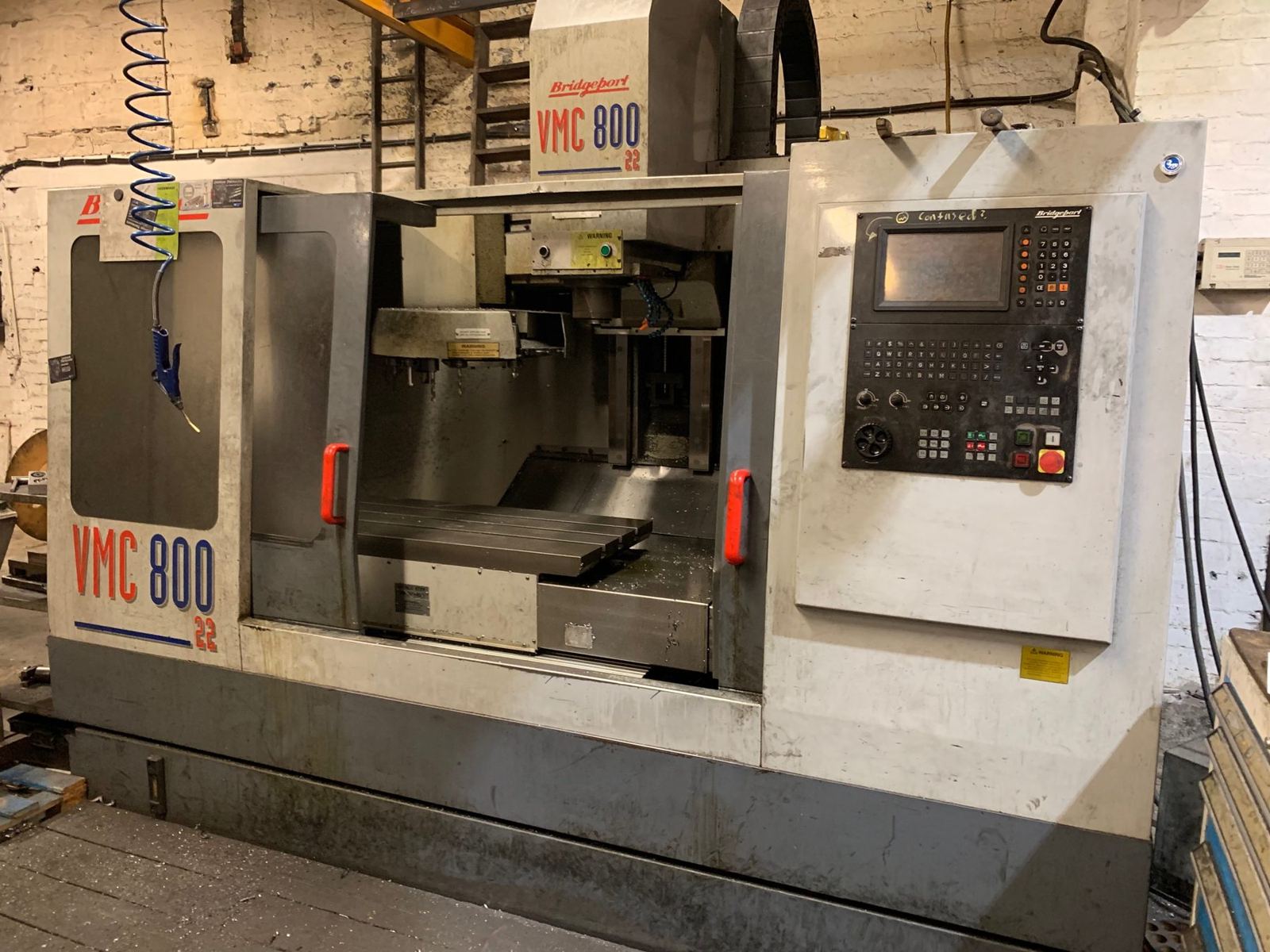

| Bridgeport VMC 800 | – | 1000 mm | 490 mm | 800 mm | – |
Travels as listed on our machinery list. Not sure your part fits? Send the drawing and we'll tell you.

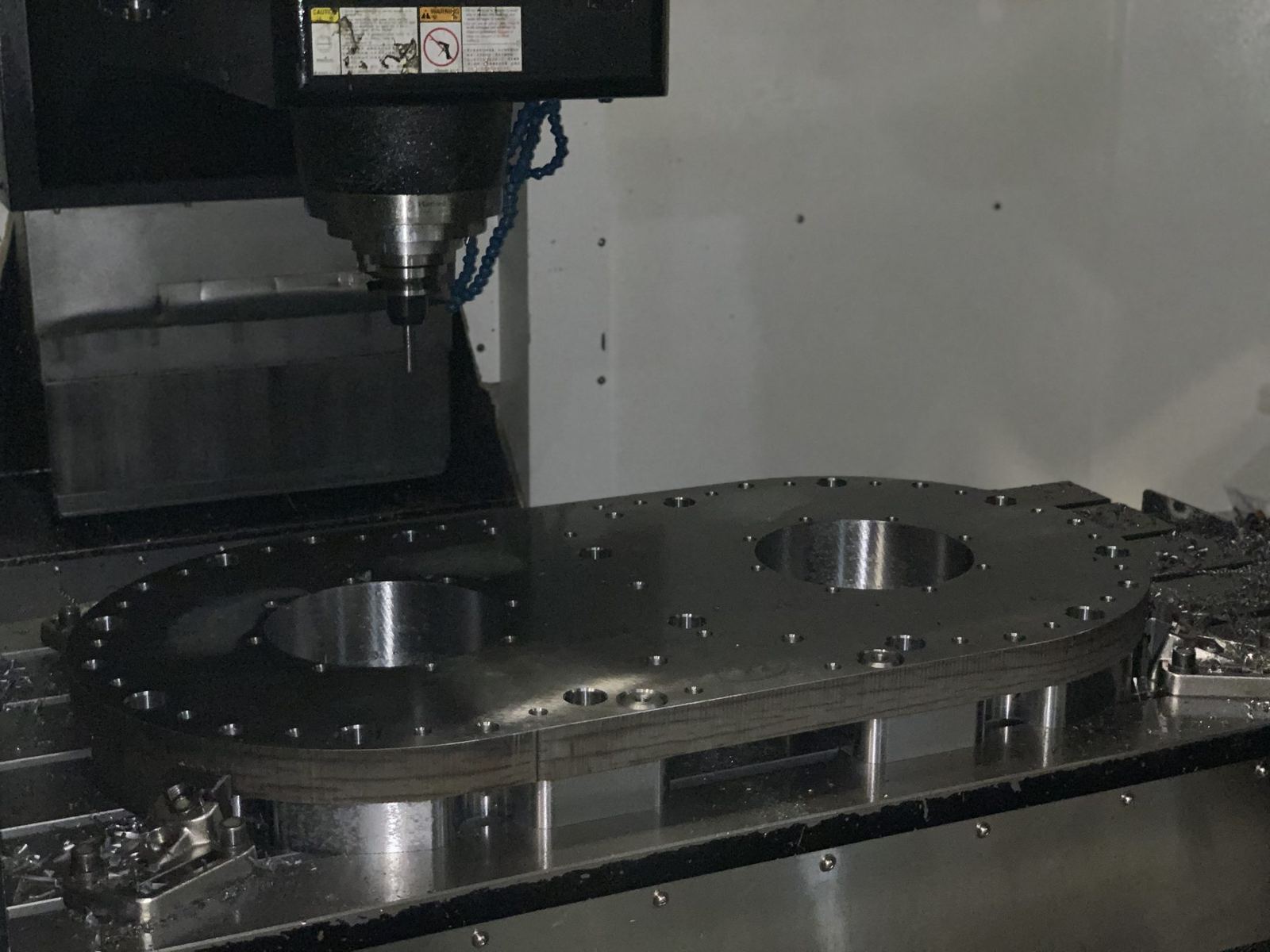

In the milling shop
Got a drawing? Send it over.
Upload your drawing with the quantity and material, and we'll come back to you with a free quotation.
Send us a drawing01706 861560
